Download Datasheet

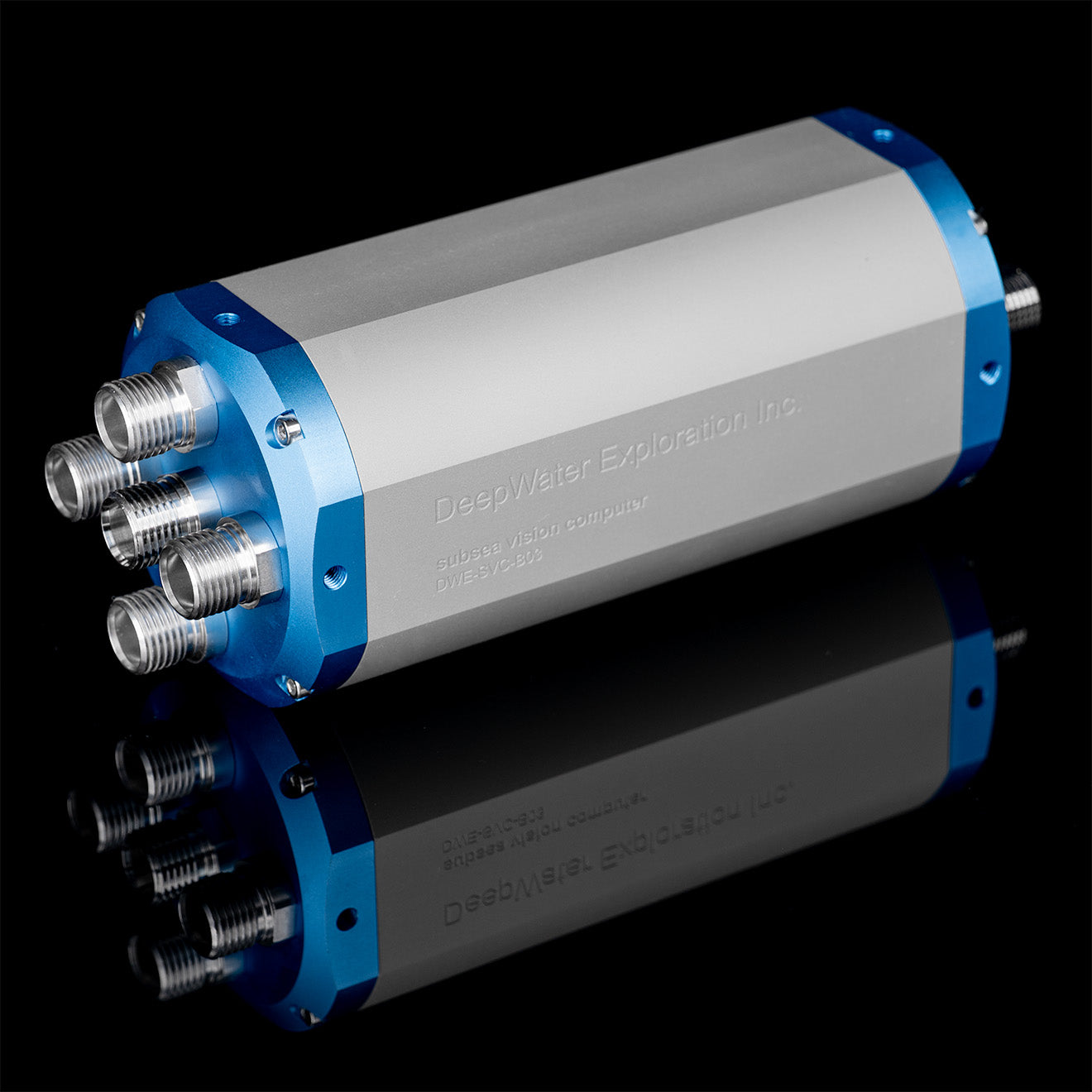

Technical Information for the Subsea Vision Computer.
Key Features
- Edge AI Performance: Integrated Nvidia Jetson Orin NX (16GB RAM) for high-performance computing and machine learning. Live Stereo Compute and VSLAM capable*.
- Large Internal Storage: Includes 1TB SSD for extensive data recording and OS management.
- Plug-and-Play Management: Automatically configures cameras to “Follower” mode and manages all clock signals to ensure precise frame synchronization without external hardware.
- Multi-Camera Support: Capable of streaming up to 4x stellarHD cameras or 2x explore3D stereo pairs simultaneously.
- Intelligent Strobe Lighting Integration: Synchronizes strobe pulses directly with the camera’s exposure window for motion-blur-free imagery.
*VSLAM is expected to release later this year
Software Setup
SVC Pro Quickstart Guide
Get Started with the SVC Pro: 5-minute setup guide to get your SVC Pro configured.
Power Specifications
| Operating Voltage | |
| Operating Current | |
| Operating Wattage | |
| Minimum Wattage | |
| Maximum Wattage |
I/O Connectors
- Cobalt
- SubConn
Cobalt
Download the I/O information for your Cobalt variant SVC Pro.
Physical & Environmental
| Property | Value |
|---|---|
| Weight in Air | 1.3 Kg |
| Weight in Water | 450 g |
| Depth Rating | 600M / 2000M / 6000M |
| Data Outputs | Raw Images, JPEGs, Depth Map, Point Cloud |
Camera Input Pinout
- Cobalt 6-Pin
- SubConn 8-Pin USB
| Cobalt (6 Pin) USB Bulkhead | COB-1160 |
|---|---|
| 1 | Black : Ground |
| 2 | Red : +5V |
| 3 | White : DATA - |
| 4 | Green : DATA + |
| 5 | Blue : FSIN (Frame-Sync) |
| 6 | Brown : Strobe |
Light Input Pinout
- Cobalt 3-Pin
- SubConn 3-Pin
| Cobalt (3 Pin) Bulkhead | |
|---|---|
| 1 | Black : Ground |
| 2 | Red : 12V - 48V |
| 3 | Yellow : Signal (PWM) |
Ethernet Output Pinout
- Cobalt 8-Pin
- Subconn 8-Pin Ethernet
| Cobalt 8-Pin Ethernet Bulkhead | |
|---|---|
| 1 | Green/White |
| 2 | Green |
| 3 | Orange/White |
| 4 | Blue |
| 5 | Blue/White |
| 6 | Orange |
| 7 | Brown/White |
| 8 | Brown |
Power Input Pinout
- Cobalt 3-Pin
- Subconn 2-Pin
| Cobalt (3 Pin) Bulkhead | |
|---|---|
| 1 | Black : Ground |
| 2 | Red : 12V - 48V |
| 3 | Yellow : NC |
CAD Files
- Cobalt
- SubConn
Download
SVC Pro (Cobalt) STEP File
Download
SVC Pro (Cobalt) Drawing (PDF)
NDAA (National Defense Authorization Act) Compliance
This product is compliant with the latest applicable sections of the National Defense Authorization Act (NDAA), specifically prohibiting the use of covered telecommunications equipment and services. We are fully committed to ensuring that none of the prohibited brands or components covered by the NDAA are utilized in this product. This compliance underscores our commitment to national security and provides assurance for government procurement and use.
CE (Conformité Européenne)
This product is CE certified, indicating conformance with relevant European Union directives and regulations regarding health, safety, and environmental protection. This certification validates that the product meets the high standards required for sale within the European Economic Area.
