Technical Information for the ultraLUX
Water Resistance
| Property | Cobalt | WetLink | SubConn MCBH3M |
|---|---|---|---|
| Depth Rating | 600m | 1000m | 2000m |
Light Specifications
| Property | |
|---|---|
| Maximum Brightness | 1720 Lumens |
| Color Temperature | 6500K |
Physical Specifications
| Property | WetLink |
|---|---|
| Mass (Air) | 120 grams |
| Weight (Water) | 50 grams |
| Material | Naval-grade, Corrosion Resistant Aluminum - Dark Gray, Abrasion-Resistant, Hard-Anodized Coating |
| Front Port | Domed Scratch-Resistant Sapphire with internal AR Coating |
Power Specifications
| Property | Standard |
|---|---|
| Voltage | 12V - 48V |
| Current | 1.05A (full brightness) |
| Wattage (Nominal) | 1W |
| Wattage (Max) | 12.6W |
| Conductor Gauge | 22 AWG |
PWM Signal
| Property | Standard |
|---|---|
| Frequency (recommended) | 6000Hz (6KHz) |
| PWM Voltage | 3.3V - 48V |
| Duty Cycle | Controls Brightness (0-100%) |
| Signal | Raw PWM |

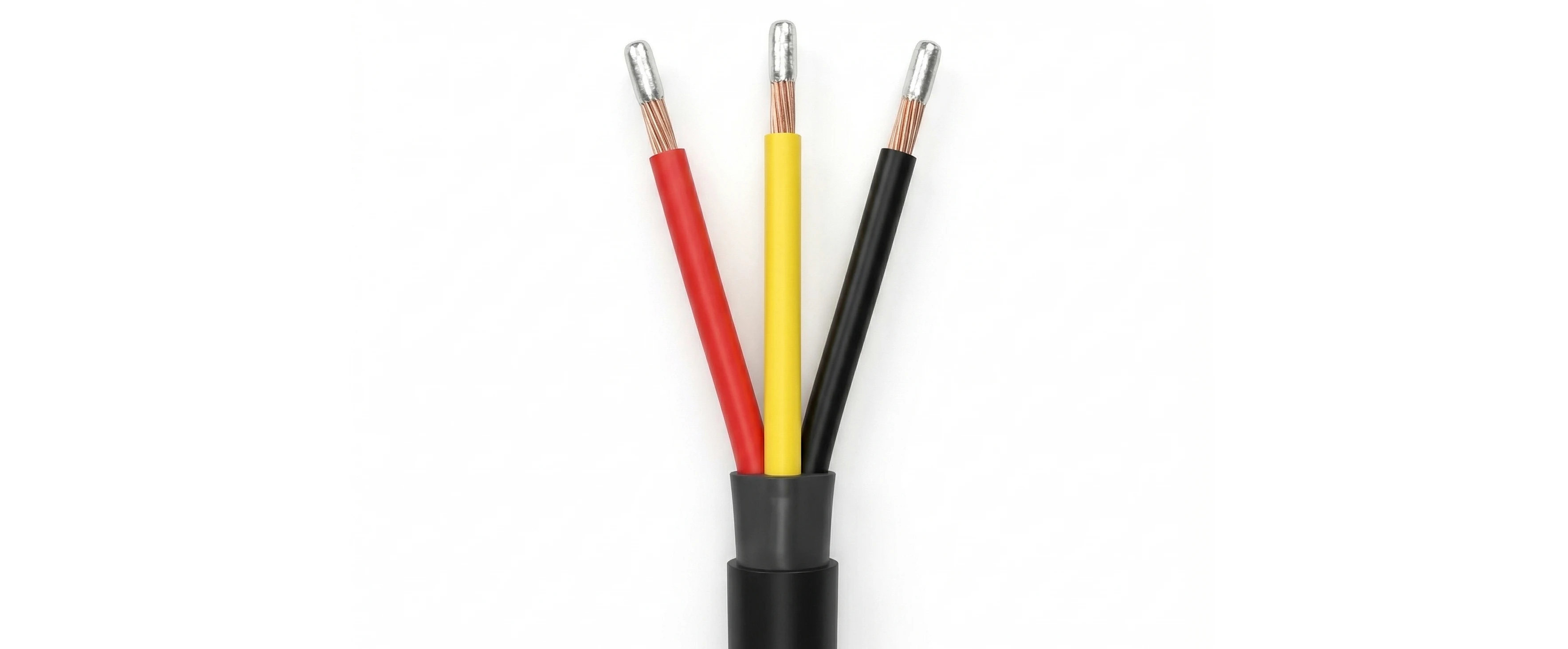

Pinouts
- WetLink
- Cobalt 3-Pin
- SubConn MCBH3M
| 1 | Black : Ground |
| 2 | Red : 12V - 48V |
| 3 | White/Yellow : PWM |
CAD Files
- Wetlink
- MCBH8M
Download
ultraLUX (WetLink) STEP File
Download
ultraLUX (WetLink) Technical Drawing (SVG)
NDAA (National Defense Authorization Act) Compliance
This product is compliant with the latest applicable sections of the National Defense Authorization Act (NDAA), specifically prohibiting the use of covered telecommunications equipment and services. We are fully committed to ensuring that none of the prohibited brands or components covered by the NDAA are utilized in this product. This compliance underscores our commitment to national security and provides assurance for government procurement and use.
CE (Conformité Européenne)
This product is CE certified, indicating conformance with relevant European Union directives and regulations regarding health, safety, and environmental protection. This certification validates that the product meets the high standards required for sale within the European Economic Area.
