micro Subsea Vision Computer (600m-6,000m)

micro Subsea Vision Computer (μSVC)

Start using our amazing solutions within minutes

Overview

DeepWater Exploration Documentation

Our machine vision products are great for computer vision, machine-learning, complex operations, and more!

Introduction

Our general vision products are great for piloting, video capture, and more!

Our interface module products designed for underwater systems in mind.

exploreHD (400m)

exploreHD Technical Specifications

exploreHD Heavy (1000m - 2000m)

exploreHD Heavy Technical Specifications

exploreHD Pro (6000m)

exploreHD Pro Technical Specifications

stellarHD (1000m-2000m)

stellarHD Technical Specifications

stellarHD Pro (6000m)

Fiber to Ethernet Converter

Gigabit Fiber to Ethernet Converter (ROV/AUV)

7-Port Multiplexer

7-Port USB Multiplexer (ROV/AUV)

ultraLUX (1000m - 2000m)

ultraLUX Technical Specifications

Software Overview

This guide is to help you install DWE_OS on its own.

DWE_OS Installation

This guide is to help you install DWE_OS alongside BlueOS.

DWE_OS + BlueOS Installation

The following are guides to help you get started with DWE_OS 2.0

Usage

This is a quickstart guide to using Discovery for Desktop.

Discovery for Desktop

Setting up RPi

This guide is to help you set up a direct connection between your vehicle/system with your laptop/PC or other desktop computer.

Desktop Network Setup

Desktop Network Setup Guide

Computer Vision Resources

This guide describes how to connect to a Raspberry Pi over a secure ssh connection.

SSH Into a Raspberry Pi

This guide explains how to configure a static IP address on your Raspberry Pi.

RPi Static IP Configuration

Set a Static IP Address on Raspberry Pi

Firmware Update

This guide is to help you setup streaming on DWE_OS 2.0

Streaming with DWE_OS 2.0

The following is a guide to help you get started with lights in DWE_OS 2.0

Configuring Lights

This guide is to help you setup WiFi in DWE_OS 2.0

Wireless Configuration

This guide will teach you how to control different aspects of your machine using DWE_OS 2.0

System Actions

This guide is to help you setup the terminal in DWE_OS 2.0

Accessing the Terminal

This guide is to help you setup preferences in DWE_OS 2.0

Configuring Preferences

This guide is to help you navigate and understand the Logs page in DWE_OS 2.0

Viewing Logs

DWE_OS Legacy

USB Connection

Camera Mounting

Cable Waterproofing

DWE_OS is a Web-based driver and software interface for DWE.ai cameras.

DWE_OS Links

The all-in-one multimedia solution for subsea network video streams

Discovery Links

Subsea Vision Computer (600m-6,000m)

Subsea Vision Computer (SVC)

Image Samples

Video Samples

This is a showcase of customer use-cases with our cameras. We have provided links to the closest examples to customer software.

Computer Vision ML/AI Applications

Aquagon™ Image Samples

Product Update Log

A guide on how to update the firmware for your exploreHD camera.

exploreHD Firmware Update Guide

A guide on how to synchronize stellarHD cameras.

Frame-Syncing Multiple Cameras

A guide on how to set your stellarHD cameras to either `Leader` mode or `Follower` mode.


SDRAM	512MB
On Board Storage Options	64 GB
CPU	64-bit ARM SoC Quad-Core
Wireless	2.4GHz 802.11 b/g/n wireless LAN
Operating Temperature	0-60 C
Ethernet Speeds	100 BaseT Ethernet
Bootup Time	30 Seconds
Latency	<= 40ms total for 3 cameras at 1080P HD


Operating Voltage
Operating Current
Operating Wattage
Minimum Wattage
Maximum Wattage

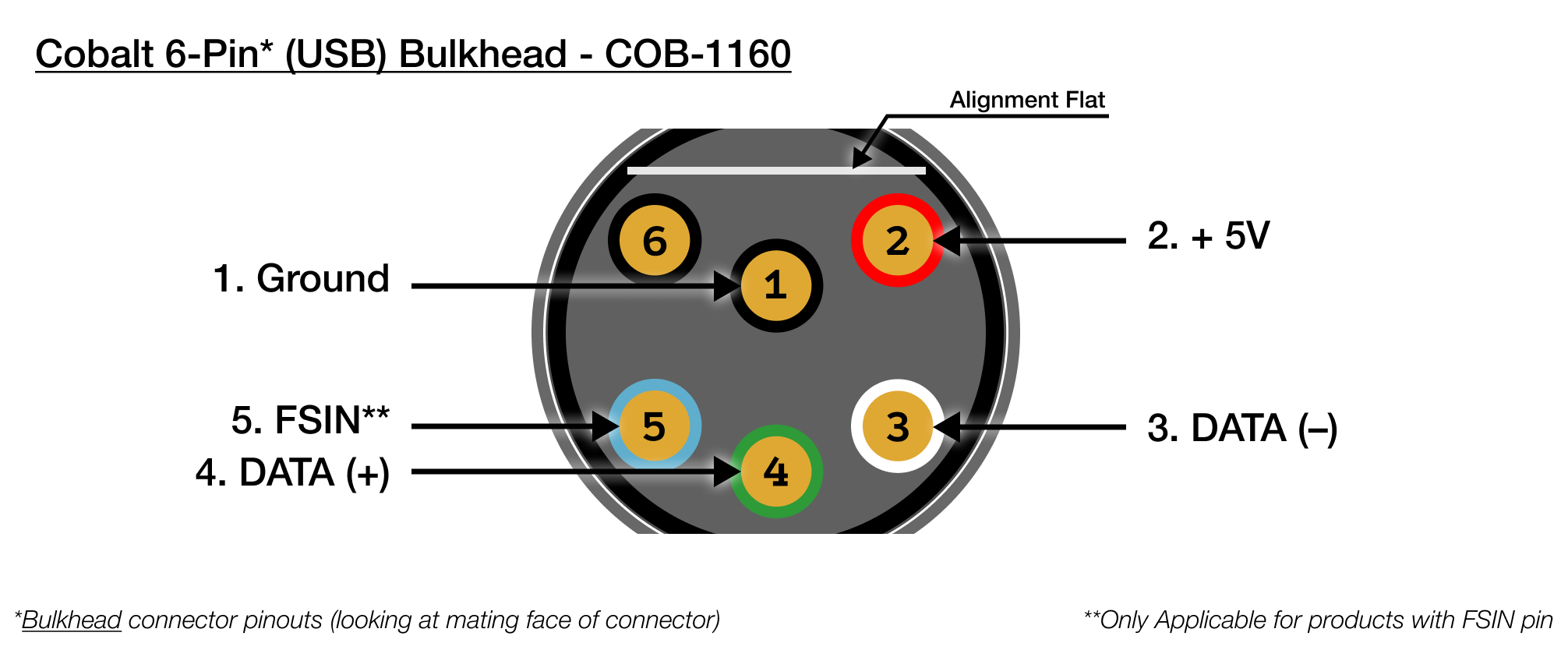

Cobalt (6 Pin) USB Bulkhead	COB-1160
1	Black : Ground
2	Red : +5V
3	White : DATA -
4	Green : DATA +
5	Blue : NC
6	Brown : NC

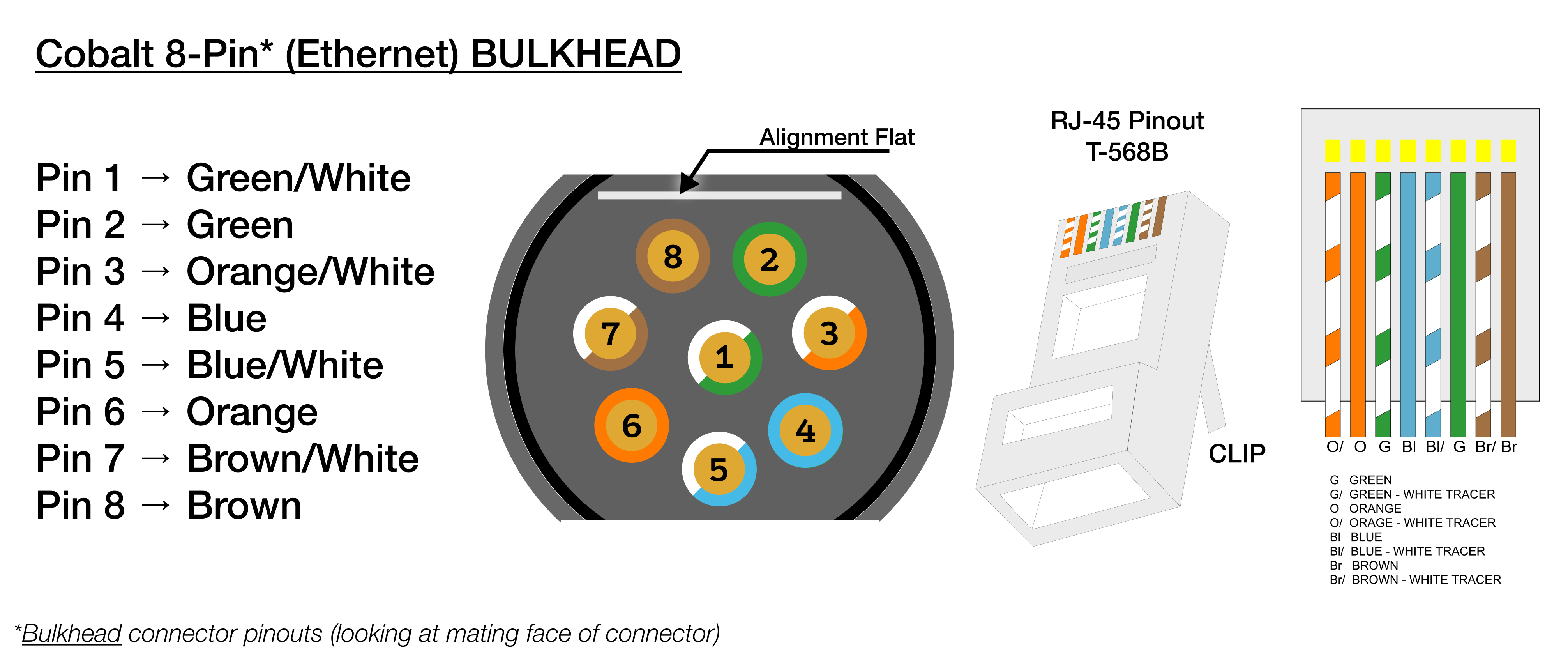

Cobalt 8-Pin Ethernet Bulkhead
1	Green/White
2	Green
3	Orange/White
4	Blue
5	Blue/White
6	Orange
7	Brown/White
8	Brown
