Gigabit Fiber to Ethernet Converter (ROV/AUV)
Technical Specifications
Power Specifications
Power Specifications
| Operating Voltage | |
| Operating Current | |
| Operating Wattage | |
| Minimum Wattage | |
| Maximum Wattage |
| Operating Voltage | |
| Operating Current | |
| Operating Wattage | |
| Minimum Wattage | |
| Maximum Wattage |
Power Input Connector
Power Input Connector
- 2-Pin JST PH 2.54/2.54mm Pitch Jumper wires
Buy Extras
JST PH 2.54/2.54mm Pitch Jumper wires
Network Specifications
Network Specifications
| Bandwidth | 1.25G |
| Compliance | IEEE 802.3/802.3u/802.3z/802.3ab |
| Supported Standards | 10/100/1000 Base-TX/FX |
| Auto-negotiation | Supports Full/Half Duplex |
| Auto-crossover | MDI/MDIX auto-crossover |
Supported SFP Transceivers
Supported SFP Transceivers
All SFP optical transceivers used must be 1.25Gb/s data rate and designed for 10/100/1000Base-TX/FX
SFP transceivers use CLASS 1 lasers. Do not look directly at the light emitting device.
BiDi is recommended over common SFP due to its ability to transmit full-duplex on one strand of fiber by using different wavelengths of light.
Learn More
Find out more about BiDi Optical Transceivers
BiDi is recommended over common SFP due to its ability to transmit full-duplex on one strand of fiber by using different wavelengths of light.
Learn More
Find out more about BiDi Optical Transceivers
Common SFP Transceivers are also compatible with our board. They will require 2 strands of fiber for full-duplex communication.

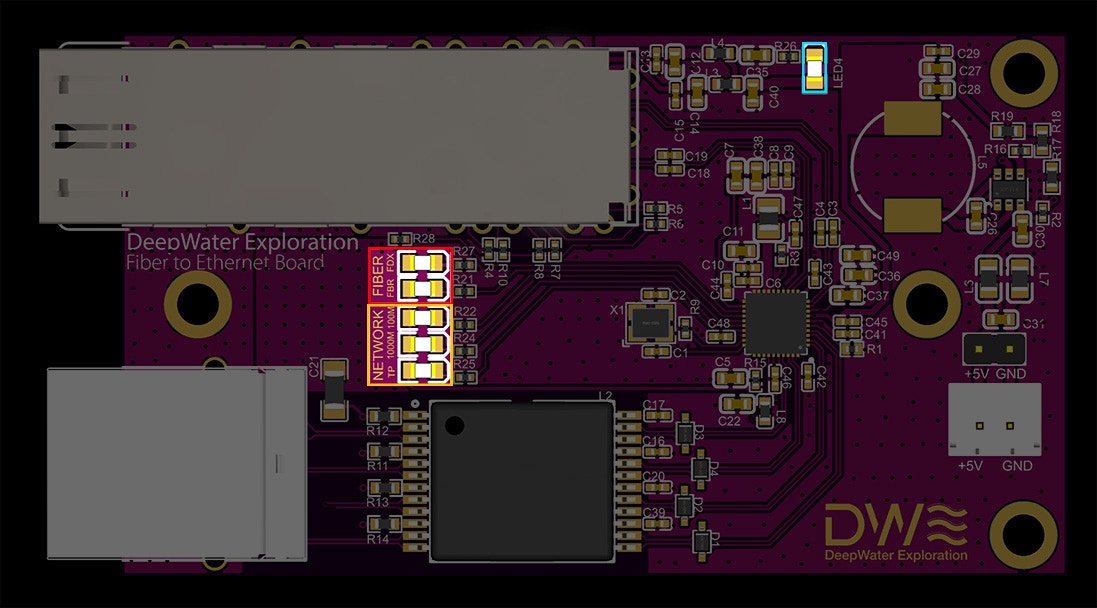

LED Indicators
LED Indicators
| FDX LED | Lights up when Full Duplex is used |
| FBR LEF | Lights up when Fiber Port is working (Fiber and Transceiver must be plugged in as a pair) |
| FDX LED | Lights up when Full Duplex is used |
| FBR LEF | Lights up when Fiber Port is working (Fiber and Transceiver must be plugged in as a pair) |
| TP | Network is connected via Ethernet |
| 100M | 100Mbps Speed is Used |
| 1000M | Gigabit Speed is Used |
| LED4 | Power LED, Lights up when +5V is applied |
CAD File
Download
Gigabit Fiber to Ethernet Converter STEP File
Technical Drawing
NDAA (National Defense Authorization Act) Compliance
This product is compliant with the latest applicable sections of the National Defense Authorization Act (NDAA), specifically prohibiting the use of covered telecommunications equipment and services. We are fully committed to ensuring that none of the prohibited brands or components covered by the NDAA are utilized in this product. This compliance underscores our commitment to national security and provides assurance for government procurement and use.
