ultraLUX Technical Specifications
Technical Specifications
Water-Resistance Specifications
Water-Resistance Specifications
| Depth Rating | 1000m |
| Ingress Protection Rating | IP69K+ equivalent |
| Safety Margin | 50% |
| Depth Rating | 1000m |
| Ingress Protection Rating | IP69K+ equivalent |
| Safety Margin | 50% |
| Depth Rating | 2000m |
| Ingress Protection Rating | IP69K+ equivalent |
| Safety Margin | 50% |
Physical Specifications
Physical Specifications
| Mass in Air | 120 grams |
| Weight in Water | 50 grams |
| Material Composition | Naval-grade, Corrosion Resistant Aluminum - Dark Gray, Abrasion-Resistant, Hard-Anodized Coating |
| Front Port | Domed Scratch-Resistant Sapphire with internal AR Coating |
| Mass in Air | 120 grams |
| Weight in Water | 50 grams |
| Material Composition | Naval-grade, Corrosion Resistant Aluminum - Dark Gray, Abrasion-Resistant, Hard-Anodized Coating |
| Front Port | Domed Scratch-Resistant Sapphire with internal AR Coating |
Power Specifications
Power Specifications
| Operating Voltage | |
| Operating Current | |
| Operating Wattage | |
| Minimum Wattage | |
| Maximum Wattage |
| Operating Voltage | |
| Operating Current | |
| Operating Wattage | |
| Minimum Wattage | |
| Maximum Wattage |
PWM Signal
PWM Signal
| Frequency (recommended) | 6000Hz (6KHz) |
| PWM Voltage | 3.3V - 48V |
| Duty Cycle | Controls Brightness (0-100%) |
| Signal | Raw PWM |
Pinout Specifications
Pinout Specifications
| 1 | Black : Ground |
| 2 | Red : 12V - 48V |
| 3 | White/Yellow : PWM |
| 1 | Black : Ground |
| 2 | Red : 12V - 48V |
| 3 | White/Yellow : PWM |
| Cobalt (3 Pin) Cable | COB-1431 |
|---|---|
| 1 | Black : Ground |
| 2 | Red : 12V - 48V |
| 3 | Yellow : Signal (PWM) |

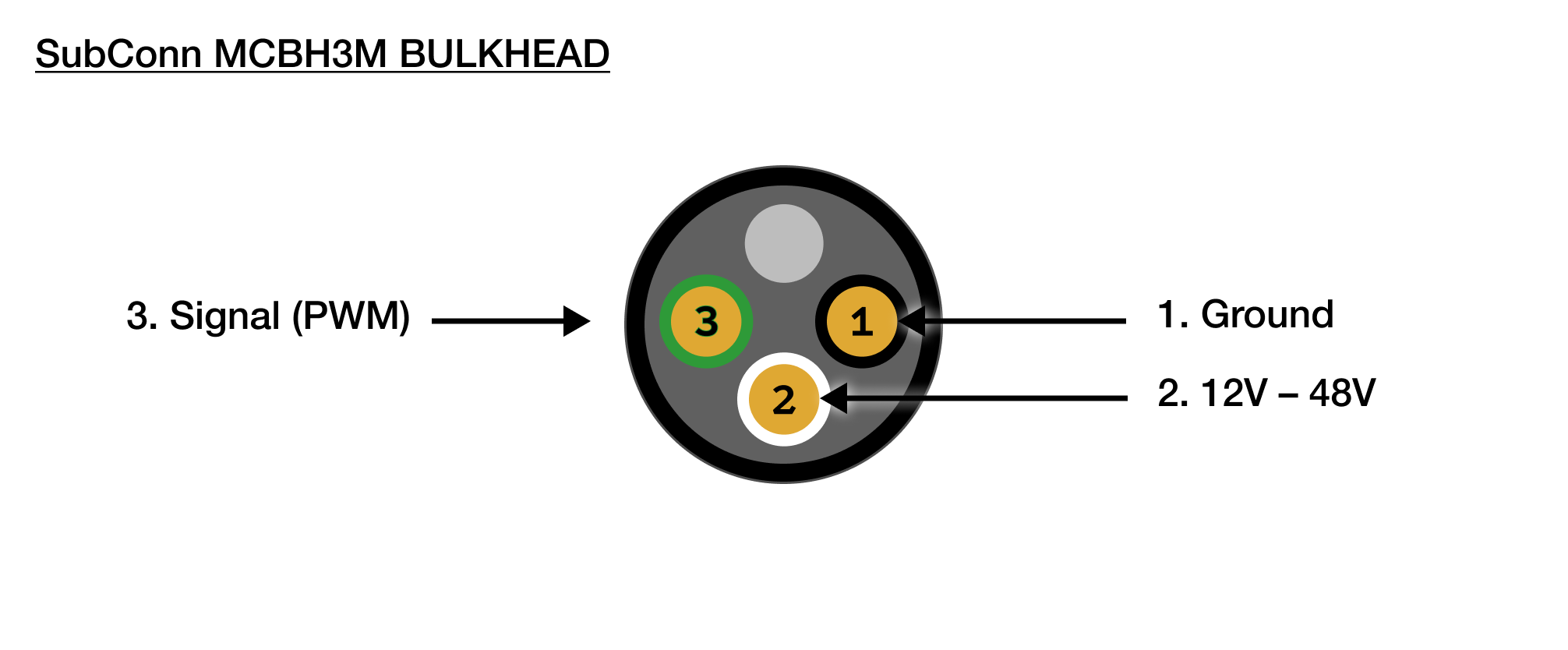

| SubConn MCBH3M Bulkhead | |
|---|---|
| 1 | Black : Ground |
| 2 | White : 12V - 48V |
| 3 | Red : Signal (PWM) |
CAD Files
Technical Drawings
The ultraLUX housing utilizes the same external design and mounting as the exploreHD Heavy – Check out the Camera Mounting guide for more information!
Micro-Circular and WetLink variations
NDAA (National Defense Authorization Act) Compliance
This product is compliant with the latest applicable sections of the National Defense Authorization Act (NDAA), specifically prohibiting the use of covered telecommunications equipment and services. We are fully committed to ensuring that none of the prohibited brands or components covered by the NDAA are utilized in this product. This compliance underscores our commitment to national security and provides assurance for government procurement and use.
CE (Conformité Européenne)
This product is CE certified, indicating conformance with relevant European Union directives and regulations regarding health, safety, and environmental protection. This certification validates that the product meets the high standards required for sale within the European Economic Area.
