exploreHD Technical Specifications
Technical Specifications
Water-Resistance Specifications
Water-Resistance Specifications
| Depth Rating | 400m |
| Ingress Protection Rating | IP69K+ equivalent |
| Safety Margin | 50% |
| Depth Rating | 400m |
| Ingress Protection Rating | IP69K+ equivalent |
| Safety Margin | 50% |
Physical Specifications
Physical Specifications
| Mass in Air | 84 grams |
| Weight in Water | 44 grams |
| Material Composition | Aerospace-grade 6061-T6 alloy aluminum - Abrasion-resistant hard anodized coating |
| Front Port | Standard Depth-Resistant Glass |
| Mass in Air | 84 grams |
| Weight in Water | 44 grams |
| Material Composition | Aerospace-grade 6061-T6 alloy aluminum - Abrasion-resistant hard anodized coating |
| Front Port | Standard Depth-Resistant Glass |
Power Specifications
Power Specifications
| Operating Voltage | |
| Operating Current | |
| Operating Wattage | |
| Minimum Wattage | |
| Maximum Wattage |
| Operating Voltage | |
| Operating Current | |
| Operating Wattage | |
| Minimum Wattage | |
| Maximum Wattage |
| Operating Current | |
| Operating Wattage | |
| Maximum Current | |
| Maximum Wattage |
| Operating Current | |
| Operating Wattage | |
| Maximum Current | |
| Maximum Wattage |

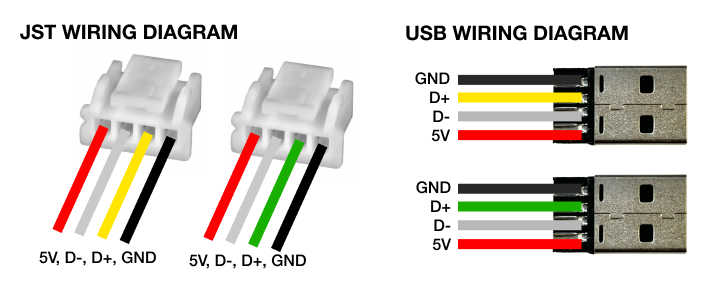

Pinout Specifications
Pinout Specifications
| Black | Ground |
| Red | 5V |
| Yellow/Green | D+ (Data Positive) |
| White | D- (Data Negative) |
| Black | Ground |
| Red | 5V |
| Yellow/Green | D+ (Data Positive) |
| White | D- (Data Negative) |
| Cobalt (6 Pin) USB Cable | COB-1461 |
|---|---|
| 1 | Black : Ground |
| 2 | Red : +5V |
| 3 | White : DATA - |
| 4 | Green : DATA + |
| 5 | Blue : NC |
| 6 | Brown : NC |
Image Sensor Specifications
Image Sensor Specifications
| Image Sensor | |
| Sensor Color | |
| Sensor Type | |
| Max Resolution | |
| Max Framerate | |
| Color Channels | |
| Bits Per Channel | |
| Compression Formats | |
| Connection | USB 2.0 High Speed / UVC Compliant |
Resolutions and Framerates
Resolutions and Framerates
- 1920x1080, 1280x720, 800x600, 640x480, 640x360, 352x288, 320x240
- @30fps, @25fps, @20fps, @15fps, @10fps
- 1920x1080, 1280x720, 800x600, 640x480, 640x360, 352x288, 320x240
- @30fps, @25fps, @20fps, @15fps, @10fps
- 1920x1080, 1280x720, 800x600, 640x480, 640x360, 352x288, 320x240
- @30fps, @25fps, @20fps, @15fps, @10fps
-
Resolutions:1920x1080
- @5fps
-
Resolutions: 1280x720
- @10fps, @5fps
-
Resolutions: 800x600
- @15fps, @10fps, @5fps
-
Resolutions:640x480, 640x360, 352x288, 320x240
- @30fps, @25fps, @20fps, @15fps, @10fps, @5fps
Lens Specifications
Lens Specifications
| Type | Fisheye |
| Focal Length | 2.65mm |
| Lens Aperture | f/1.9 |
| Minimum Focus Distance | 20-30cm |
| Horizontal FOV (In Air) | 138° |
| Vertical FOV (In Air) | 70° |
| Diagonal FOV (In Air) | 168° |
| Horizontal FOV (In Water) | ~82° |
| Type | Fisheye |
| Focal Length | 2.65mm |
| Lens Aperture | f/1.9 |
| Minimum Focus Distance | 20-30cm |
| Horizontal FOV (In Air) | 138° |
| Vertical FOV (In Air) | 70° |
| Diagonal FOV (In Air) | 168° |
| Horizontal FOV (In Water) | ~82° |
CAD Files
Technical Drawings
Firmware Updater
Please check the product changelog, before updating firmware.
Download
Firmware Updater for exploreHD, exploreHD Heavy, and exploreHD Pro.
NDAA (National Defense Authorization Act) Compliance
This product is compliant with the latest applicable sections of the National Defense Authorization Act (NDAA), specifically prohibiting the use of covered telecommunications equipment and services. We are fully committed to ensuring that none of the prohibited brands or components covered by the NDAA are utilized in this product. This compliance underscores our commitment to national security and provides assurance for government procurement and use.
CE (Conformité Européenne)
This product is CE certified, indicating conformance with relevant European Union directives and regulations regarding health, safety, and environmental protection. This certification validates that the product meets the high standards required for sale within the European Economic Area.
